CAPABILITIES
Custom Injection Molding services
From prototypes to full-scale production, we deliver high-quality molded parts with speed and precision, backed by the right tooling strategy.
Prototype & Tooling
Aluminum bridge tooling for fast turnarounds, and hardened steel molds built for high-volume production runs.
Engineering-grade Resins
ABS, polycarbonate, nylon, POM, glass-filled blends, and more, matched to your part's strength, heat, and cosmetic needs.
Overmolding & Insert Molding
Multi-material parts, soft-touch grips, and molded-in threaded inserts or hardware, done in a single process.

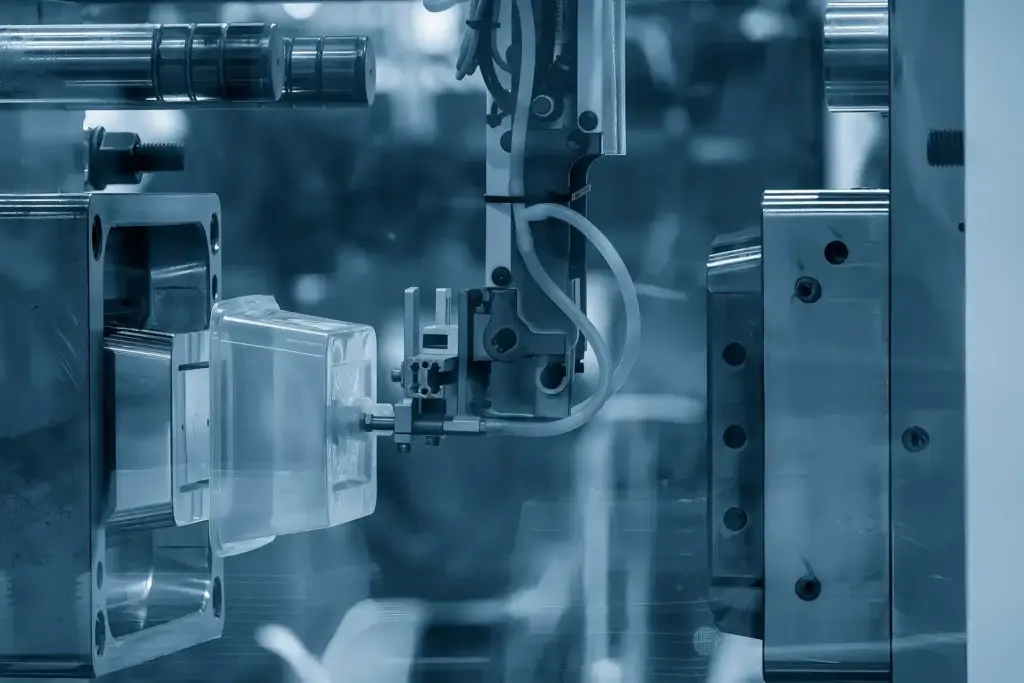

OVERVIEW
Why teams choose Flatout for Injection Molding
We apply this process where it delivers the best balance of precision, speed, and cost for your part and its stage.
- Rapid, aluminum, and steel production tooling
- Overmolding and insert molding for complex, functional parts
- SPI A through D finishes, printing, engraving, and assembly
| Maximum part size | 1200 × 1000 × 500 mm |
|---|---|
| Part-to-part repeatability | ±0.1 mm |
| Mold cavity tolerance | ±0.02 mm |
| Mold cavities | Single-cavity, multi-cavity, and family molds |
| Mold types | Steel and aluminum tooling for 1,000, 5,000, 30,000, and 100,000+ cycles |
| Wall thickness | 0.5 mm to 5 mm |
| Draft | 0.5° to 20° |
| Ribs / gussets | 0.5 mm to 3 mm thick |
| Bosses | Diameter 3 mm to 10 mm |
| Lead time | Most orders completed within 15 working days |
| Engineering review | On every quote |
|---|---|
| DFM feedback | Included |
| Documentation | Certs, CofC, FAI on request |
| Quote turnaround | Typically within 24 hours |
MATERIALS
Injection Molding materials
We offer a wide range of injection molding materials to support projects from simple prototypes to complex, high-volume production.
ABS
Tough, impact-resistant, and easy to mold. The go-to for enclosures, housings, and consumer products.
Polycarbonate (PC)
High impact strength and optical clarity for lenses, guards, and parts that can't afford to crack.
TPU / TPE Elastomers
Rubber-like flexibility for grips, seals, gaskets, and soft-touch overmolds in a range of durometers.
Nylon (PA6 / PA66)
Excellent wear resistance and strength, ideal for gears, bushings, clips, and structural parts. Available glass-filled.
Polypropylene (PP)
Chemical resistance, living hinges, and low cost. The workhorse for containers, caps, and high-volume parts.
Acetal (POM / Delrin)
Low friction, high stiffness, and dimensional stability for precision moving parts and mechanisms.
FINISHING OPTIONS
Injection Molding surface finishes
Whether you’re creating a small batch of custom parts or scaling up for high-volume production, Flatout’s custom injection molding services offer the flexibility you need.

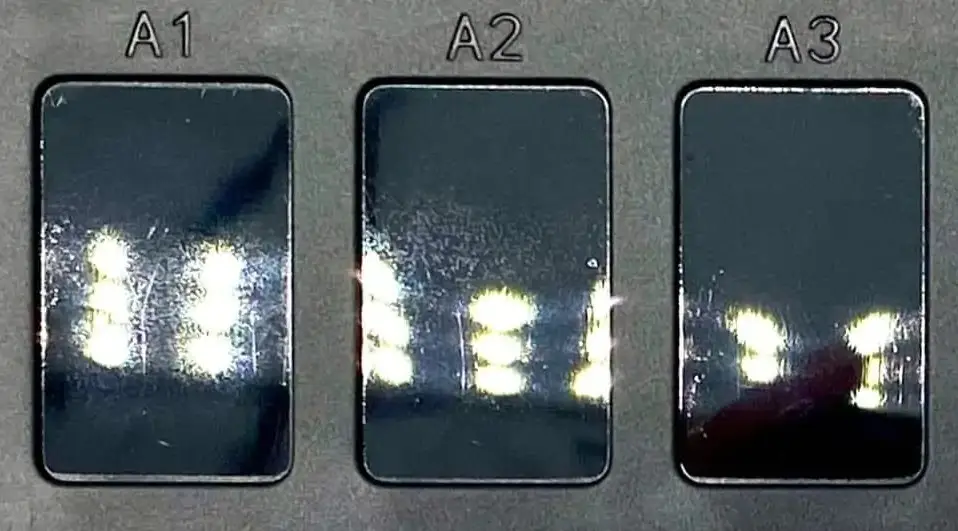

SPI A

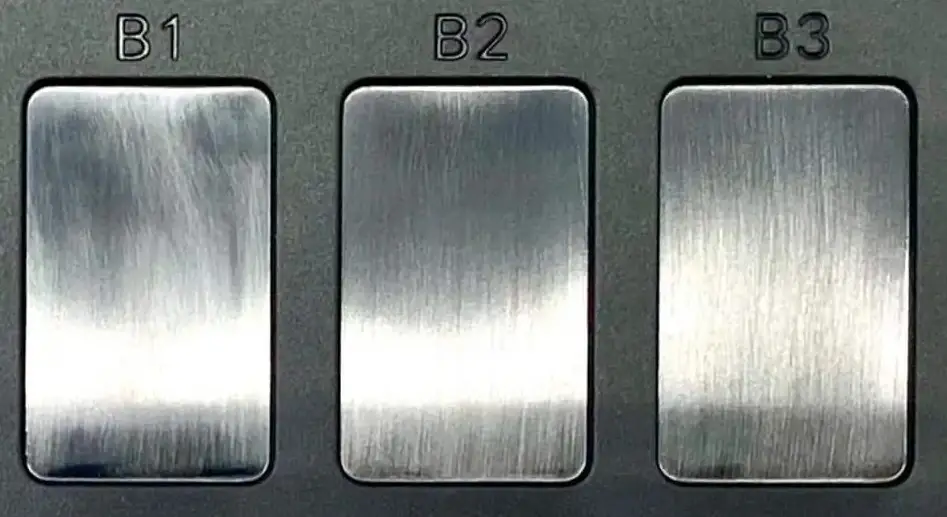

SPI B

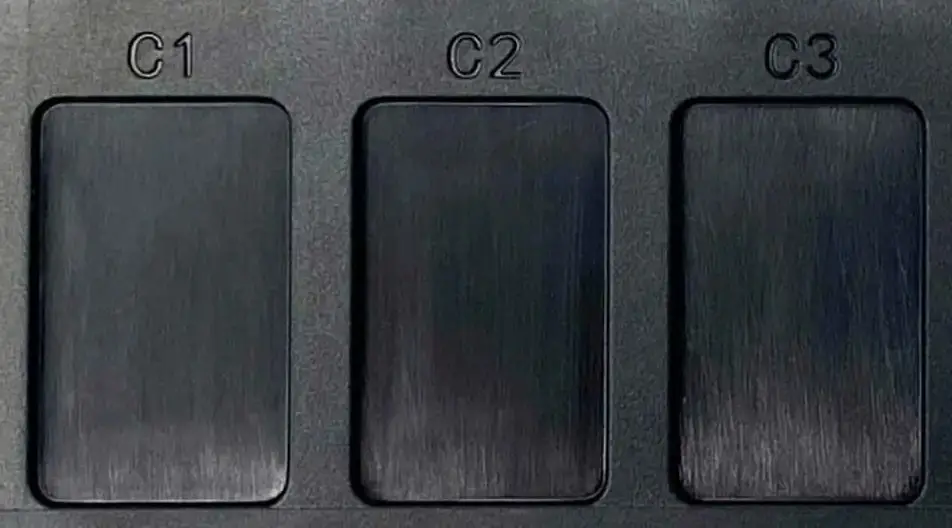

SPI C

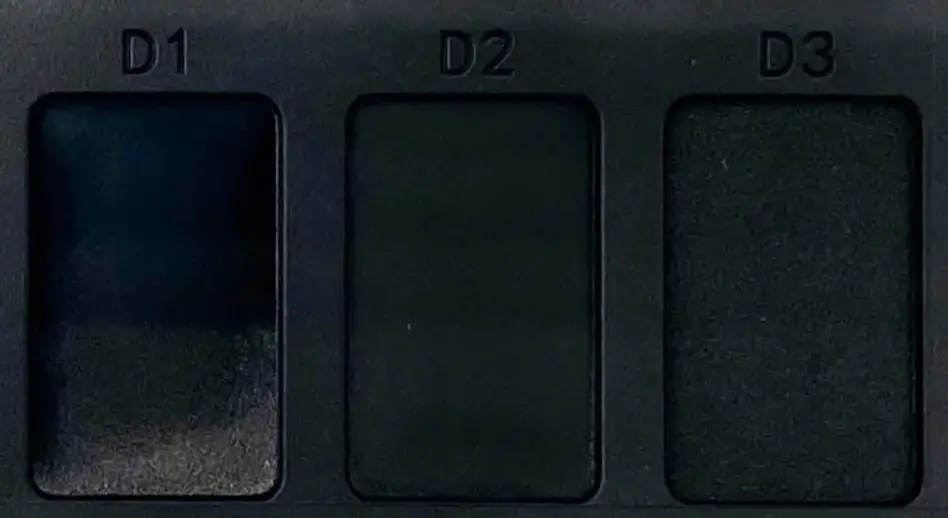

SPI D
- ISO-Certified Partner Network ISO-Certified Partners
- No Order Minimums No Minimums
- Quotes Within 24 Hours 24h Quotes
- Inspection Before Shipment Pre-Ship Inspection
SERVICES
Plastic Injection Molding services
We offer a wide range of injection molding services to support projects from simple prototypes to complex, high-volume production. Explore our specialized services below.

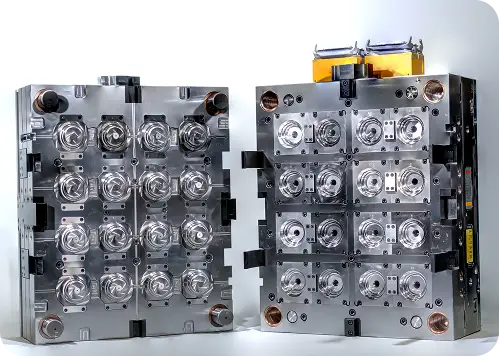

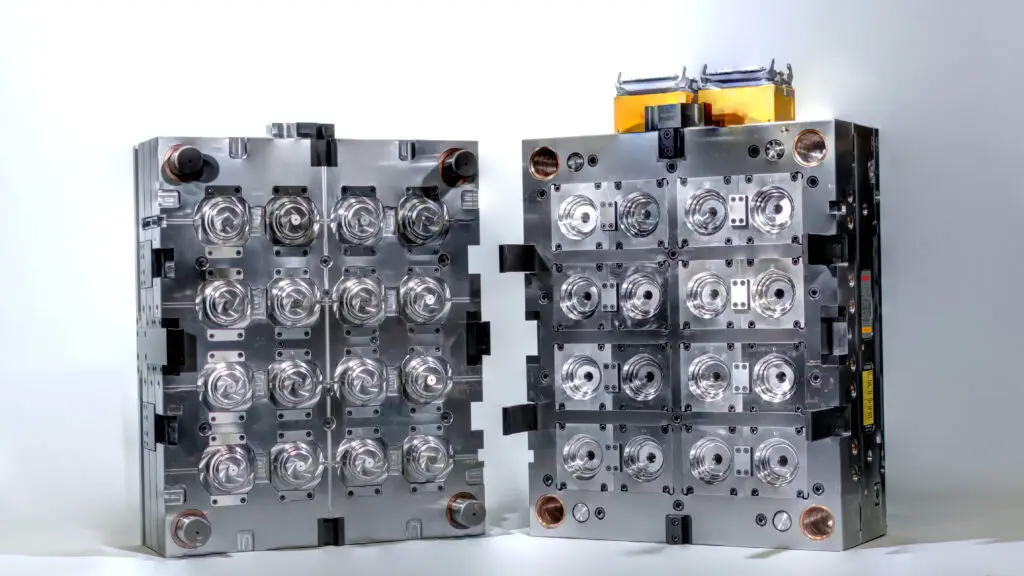

Injection Mold Tooling
From rapid tooling to full-scale production molds, we offer fast, cost-effective tooling solutions tailored to your part geometry and volume requirements. Our molds are built for durability, repeatability, and precision.

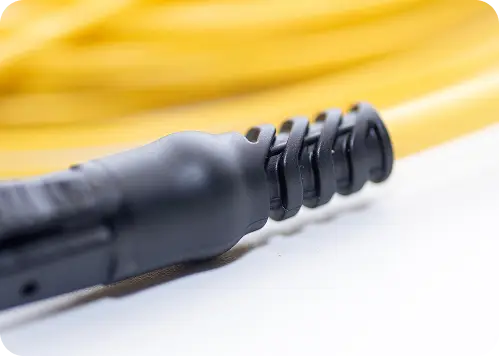

Overmolding
Combine multiple materials into a single component through precision overmolding. This process is ideal for creating parts with enhanced grip, cushioning, or integrated soft-touch features.

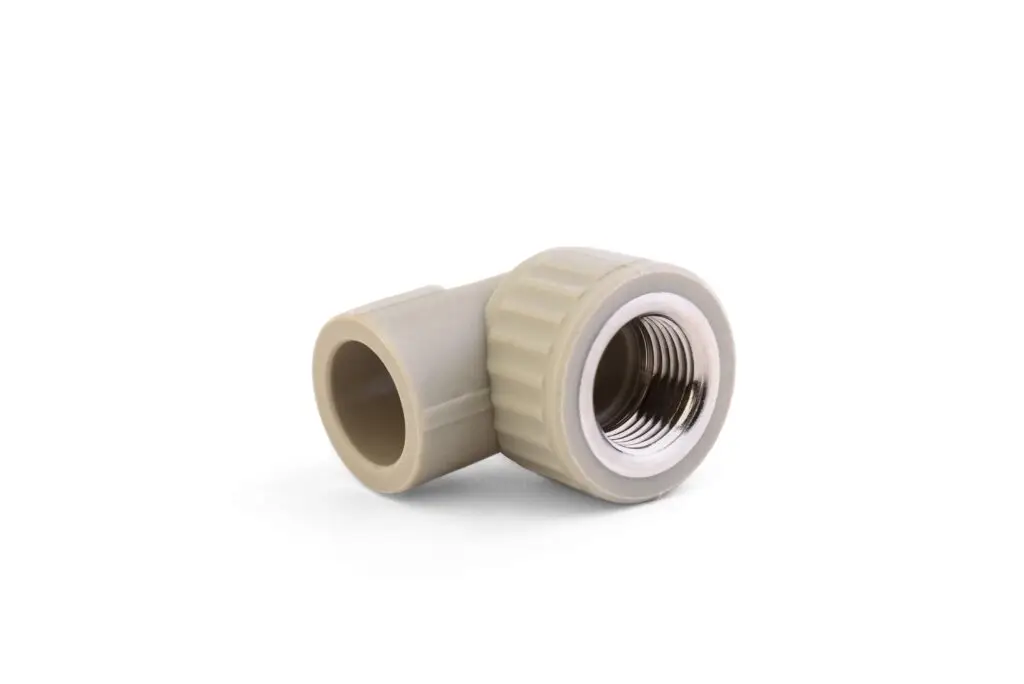

Insert Molding
Integrate metal or threaded inserts directly into molded plastic components for added strength and functionality. Ideal for electronics, fasteners, and parts requiring reinforced load points.
WHY FLATOUT
More than a fab shop
We are a true manufacturing partner throughout your product journey. Get reliable parts, tight tolerances, fast turnaround, and real human support from quote through delivery.

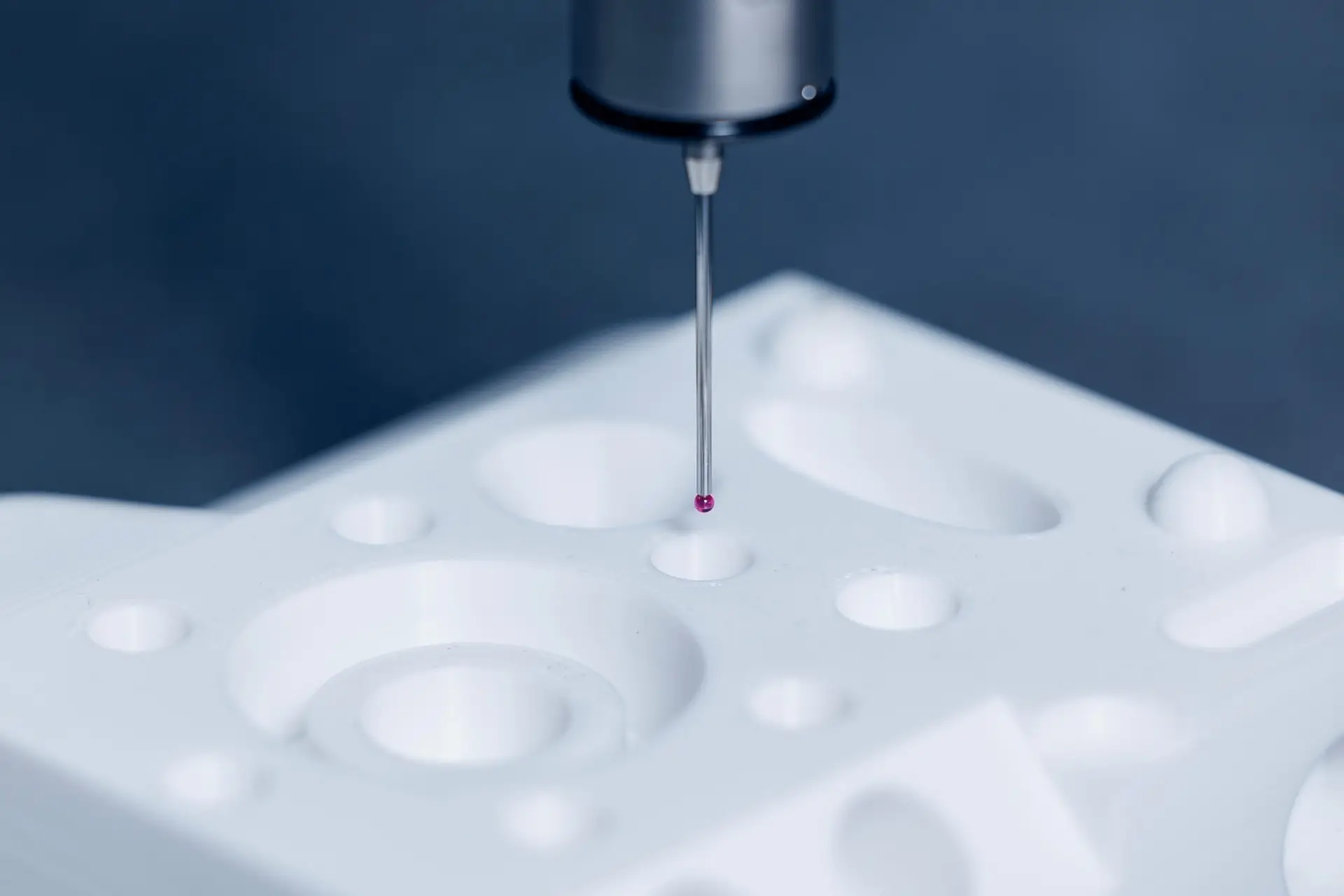

Quality that comes standard
Every part is reviewed against your requirements before shipment. Careful inspection and clear documentation help deliver consistent results.
Responsive human support
Real people respond quickly, communicate clearly, and keep your project moving from quote through delivery.
ISO-certified partners
We work with qualified manufacturing partners to provide dependable processes and consistent quality.
From one part to production
Start with a single prototype and scale into production quantities without changing the standards your parts must meet.
HOW IT WORKS
From CAD file to delivered parts
A clear process with our engineering team involved at the points that matter.
Upload your design files
Send your CAD files in STEP, IGES, SolidWorks, Parasolid, or STL formats. Include PDF or DXF drawings for tolerances and finish requirements.
Receive your quote
Our engineering team reviews your files, confirms manufacturability, and provides clear pricing, timing, and next steps.
Approve production
Review and approve the process, material, finish, and inspection requirements before manufacturing begins.
Production and delivery
Your parts are manufactured, inspected before shipment, and delivered with progress updates along the way.
Prototype, low volume, or full production
Whether you need a handful of prototype parts or thousands of production components, we scale with you.

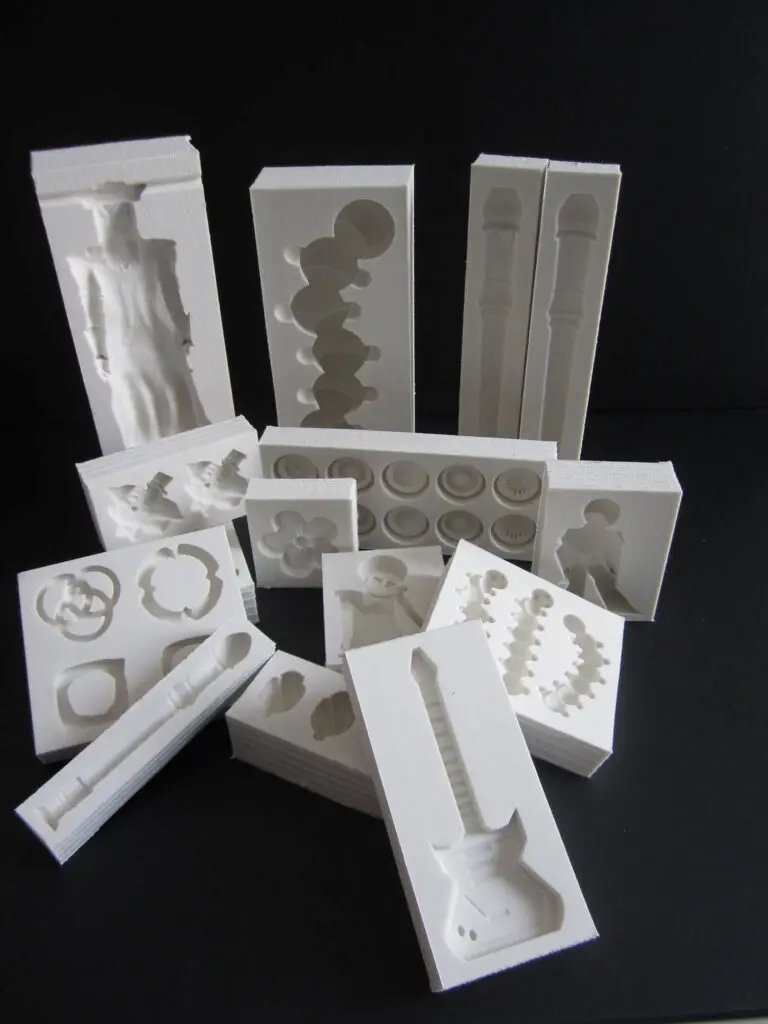

1 to 100 parts
Rapid prototyping
Manufacturing for fast-moving projects. Perfect for functional prototypes, one-off parts, or fitment checks when speed is critical.
- Lead time: 1 to 10 business days
- Capability: 1 to 100 pcs
- Ideal for early-stage development and short-run testing
100 to 1,000 parts

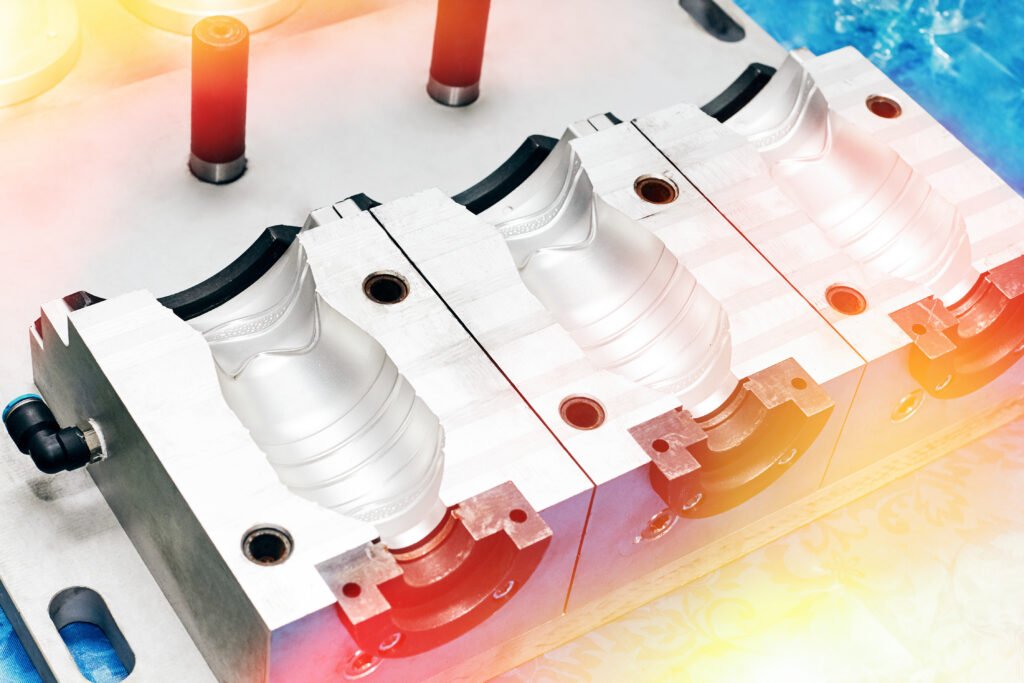

Low volume manufacturing
Bridge the gap between prototyping and full production. Built for startups, custom products, and pre-production runs.
- Lead time: 5 to 15 business days
- Quantity: 100 to 1,000 pcs
- Ideal for custom parts, pilot runs, and inventory testing

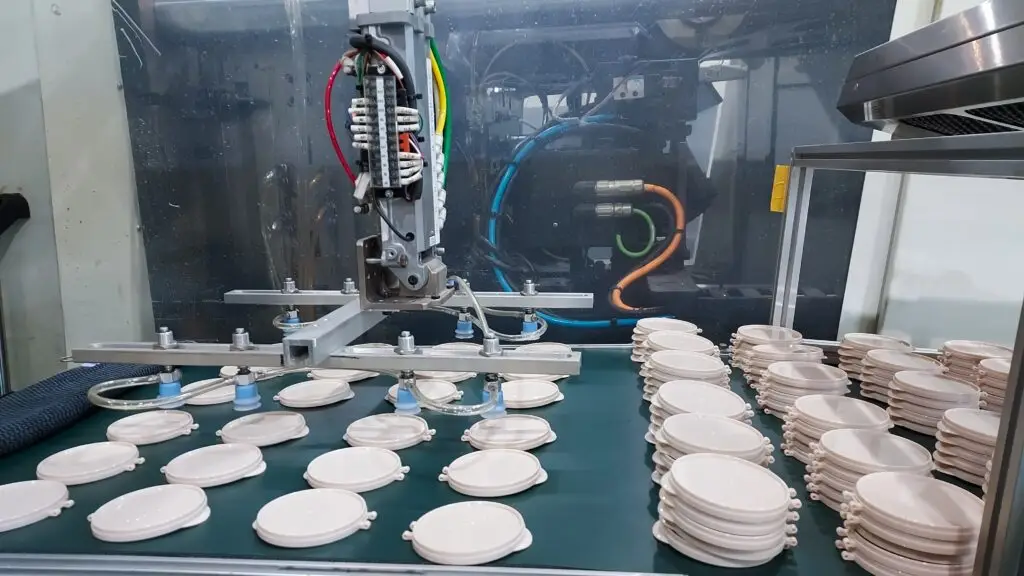

1,000+ parts
End-use production
Full-scale manufacturing for finished products. Consistent, repeatable results with tight tolerances and quality control baked in.
- Lead time: 10 to 20 business days
- Quantity: 1,000+ pcs
- Ideal for production-grade parts across industries
FAQ
Questions, answered
Have a question that is not answered here? Contact our engineering team directly and we will get back to you quickly.
What file types do you accept?
We accept major 3D CAD formats, including STEP, IGES, SolidWorks, Parasolid, and STL. PDF and DXF drawings are also helpful for communicating dimensions, tolerances, materials, and finish requirements.
How fast can parts be made?
Timing depends on the process, material, quantity, and complexity of your parts. Quotes are typically provided within 24 hours. Prototype orders may be completed in as little as 1 to 10 business days, while larger production orders may require additional time.
Can you hold tight tolerances?
Yes. We can hold tolerances as tight as ±0.001 inch on critical features when the material, geometry, and manufacturing process allow it. Include a drawing with your CAD files so our engineering team can review each tolerance requirement.
What industries do you serve?
We support customers across automotive, industrial equipment, consumer products, product development, and other industries that require dependable custom parts. Contact us to discuss the requirements for your application.
Do you offer surface finishing services?
Yes. Available finishes include anodizing, powder coating, plating, polishing, and other options based on the material and manufacturing process. Tell us your appearance and performance requirements when requesting a quote.
What happens after I submit a quote request?
Our engineering team reviews your files, material, quantity, tolerances, and finish requirements. We will contact you if we have questions, then provide clear pricing, estimated timing, and the next steps for production.
